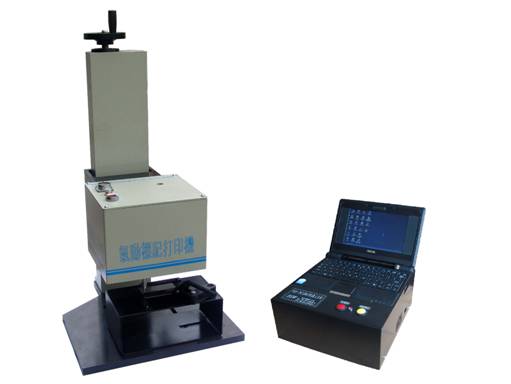

GM108+FU2+EV34

Note: Click on the photo for close up.




Features:

，         Controlled by build in PC.

，         No extra PC is required

，         Full functions.

，         Compact

，         Suitable for complicated marking application.



Functions:

1.       Edit and save unlimited marking files. (limited by disk space)

2.       Mark any characters and symbols from Windows and AUTOCAD with any font and size in any shape and angles

3.       Any logos and graphics.

4.       Automatic serial number, date and VIN.

5.       2D data matrix marking.

6.       Network interface.

7.       Marking log management.

8.       Barcode reader and printer interface.

9.       Inputs and outputs for external interface.



Specifications:

Marking head

Marking area:     100mmX80mm

Marking depth:  0.01mm~1mm

Marking speed:  3~5 characters/per second.

Max hardness of workpiece:  HRC60

Air supply :   0.5MPa 60L/min

Operating temperature:     -20oC~ 45oC

Dimensions:   700mmX600mmX400mm

Weight:    45kg

Controller with PC

Dimensions: 230mmX225mmX95mm (9￣X8.9￣X3.7￣)

Power supply:   115 or 240 VAC, 50 or

60 Hz, as required. 2 A
