Four records set by Eastward in Last 14 years





1.     A marking system with the largest marking windows.



2.     The smallest full function marking system





A marking system for marking on the wheel of locomotive

Material: Steel

Marking area: 2000mmX2700mm (79” X 106”)

Marking depth: 0.85mm (0.00349”)

Feature: Dual stylus marking different data at the same, the system interfacing with network by PLC. Marking data passed to the marking system automatically bye the server


FU122 portable marking system

Dimension of marking head: 200mmX120mmX100mm (7.88”X4.7”X4”)

Dimension of the controller: 230mmX225mmX95mm (9”X8.9”X3.7”)

Features:

120mmX20mm (4.7”X0.79”) marking windows.

Running Windows XP.

Any graphics, logos, automatic serial number, date, VIN marking.

Capable to be controlled from with network wired or wireless.

2D data matrix marking.

Building in 3 inputs and 5 outputs PLC control





1.     A marking system working in the hottest marking environment



2.     A marking system marking on work piece with the largest marking variation





Material: billet

Marking area: 130mm X 20mm  (5.0” X 0.79”)

Marking depth: 0.75mm (0.03)

Feature: The temperature of work piece is at 800oC (1472°F)

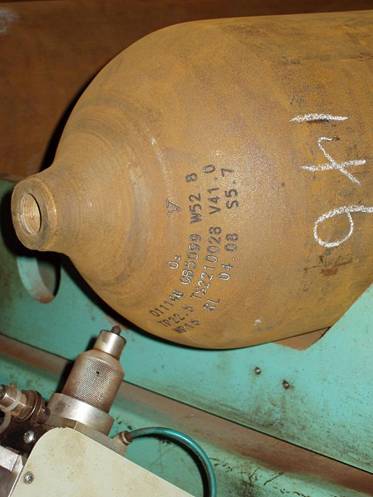

Material: Steel

Marking area: 550mm X 120mm (21.7” X 4.7”)

Marking depth: 0.5mm (0.0197”)

Feature: The variation of diameter is 12 mm (0.4728inch)
