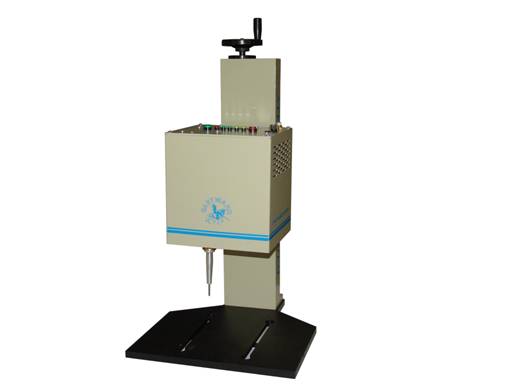

GM108U+EV34

Note: Click on the photo for close up

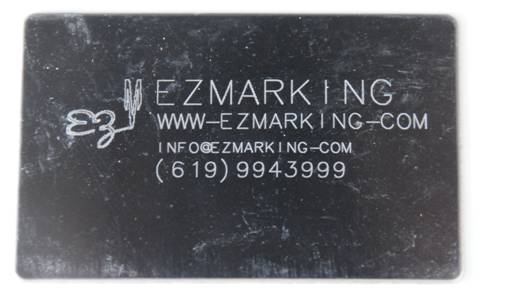

MarkingSamples 034.JPG

Features:

Integrated design and compact, no PC is required. Highly reliable. Simple and easy to operate.

Suitable for simple, large volume marking.



Functions:

1.       Edit and save up to 10 marking files.

2.       Mark any font and size from Windows and AUTOCAD.

3.       Any logo and graphics.

4.       Automatic serial number, date and VIN.

5.       Automatic daily and total marking counters.

6.       Take input data from barcode scanner.

7.       Inputs and outputs for external interface.



Specifications:

Marking area:     100mmX80mm

Marking depth:  0.01mm~1mm

Marking speed:  3~5 characters/per second.

Max hardness of workpiece:  HRC60

Power supply:   115 or 240 VAC, 50 or

60 Hz, as required. 2 A

Air supply :   0.5MPa 60L/min

Operating temperature:     -20oC~ 45oC

Dimensions:   700mmX400mmX400mm

Weight:    45kg
